EZVIZ H9C DUAL 2K 3MP WIRELESS IP CAM
|
| Model
|
CS-H9c-R100-8H33WKFL
|
| Image Sensor
|
1/2.7" Progressive Scan CMOS
|
| Shutter Speed
|
Self-adaptive shutter
|
| Lens
|
Upper Camera: 2.8mm@F1.6, viewing angle: Diagonal 130°, Horizontal 108°, Vertical 56°
Bottom Camera: 6mm@F1.6, viewing angle: Diagonal 62°, Horizontal 55°, Vertical 28°
|
| PT Angle
|
Pan: 350°, Tilt: 80°
|
| Minimum Illumination
|
0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data from EZVIZ laboratories)
|
| Lens Mount
|
M12
|
| Day & Night
|
IR-cut filter with auto-switching
|
| DNR
|
3D DNR
|
| WDR
|
Digital WDR
|
| Black & White Night Vision
|
30m / 98ft
|
| Max Resolution
|
2304 × 1296
|
| Frame Rate
|
Max: 15fps; Self-Adaptive during network transmission
|
| Video Compression
|
H.265 / H.264
|
| H.265 Type
|
Main Profile
|
| Video Bit Rate
|
Quad HD, Full HD, Hi Def, Standard. Adaptive bit rate.
|
| Audio Bit Rate
|
Self-Adaptive
|
| Wi-Fi Standard
|
IEEE802.11b/g/n
|
| Frequency Range
|
2.4 GHz ~ 2.4835 GHz
|
| Channel Bandwidth
|
Supports 20 MHz
|
| Transmission Rate
|
11b: 11 Mbps, 11g: 54 Mbps, 11n: 150 Mbps
|
| Wi-Fi Pairing
|
AP pairing
|
| Protocol
|
EZVIZ Cloud Proprietary Protocol
|
| Interface Protocol
|
EZVIZ Cloud Proprietary Protocol
|
| Wired Network
|
RJ45 × 1 (10M / 100M Adaptive Ethernet Port)
|
| Security
|
WPA-PSK / WPA2-PSK
|
| Smart Alarm
|
AI-Powered Human and Vehicle Shape Detection, Motion Detection
|
| Auto Tracking
|
Supports
|
| Customized Alert Area
|
Supports
|
| Two-way Talk
|
Supports
|
| Preset Locations
|
Supports
|
| General Functions
|
Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
|
| Local Storage
|
Supports microSD card (Up to 512 GB)
|
| Cloud Storage
|
Supports EZVIZ CloudPlay storage
|
| Operating Conditions
|
-30°C to 50°C (-22°F to 122°F), Humidity 95% or less (non-condensing)
|
| IP Grade
|
Weatherproof Design
|
| Power Supply
|
DC 12V / 1.5A
|
| Power Consumption
|
Max. 12W
|

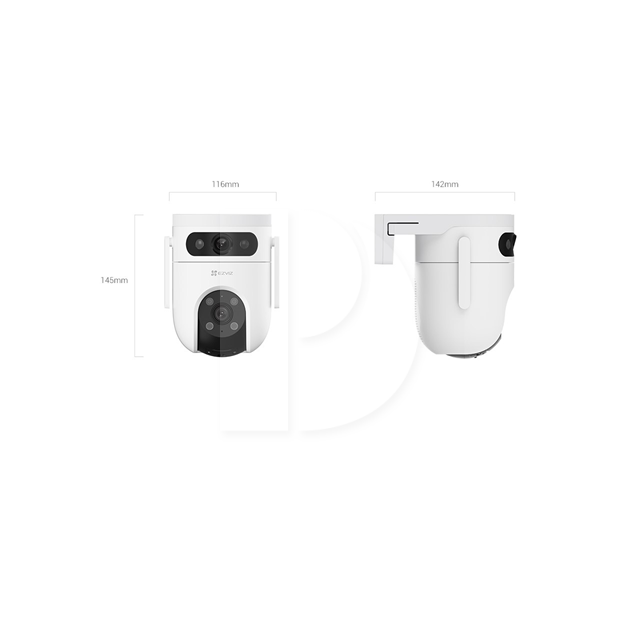

| Dimensions
|
145 × 116 × 142 mm (5.71 × 4.57 × 5.59 inch)
|
| Packaging Dimensions
|
150 × 150 × 194 mm (5.90 × 5.90 × 7.64 inch)
|
| Net Weight
|
668 g
|
| Weight with Package
|
960 g
|
| In the Box
|
H9c Camera
Drill Template
Screw Kit
Waterproof Kit
Power Adapter
Regulatory Information
Quick Start Guide
|
| Certifications
|
CE / WEEE / RoHS / REACH
|
