EZVIZ H1C 1080P WIRELESS IP CAM
|
| Model
|
CS-H1c
|
| Image Sensor
|
1/3" Progressive Scan CMOS
|
| Shutter Speed
|
Self-adaptive shutter
|
| Lens
|
2.8mm, View Angle: 108° (Diagonal), 91° (Horizontal), 50° (Vertical)
|
| Minimum Illumination
|
0.5 Lux @(F2.2, AGC ON), 0.1 Lux with IR
|
| Lens Mount
|
M12
|
| Day & Night
|
IR-cut filter with auto-switching
|
| DNR
|
3D DNR
|
| IR Night Vision Distance
|
Up to 32 ft / 10 m
|
| Max. Resolution
|
1920 × 1080
|
| Frame Rate
|
Max: 25 fps; Self-Adaptive during network transmission
|
| Video Compression
|
H.264
|
| H.264 Type
|
Main Profile
|
| Video Bit Rate
|
HD; Standard. Adaptive bit rate
|
| Audio Bit Rate
|
Self-Adaptive
|
| Max. Bitrate
|
1 Mbps
|
| Smart Alert
|
Motion Detection
|
| Two-way Talk
|
Supports
|
| General Functions
|
Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark
|
| Wi-Fi Standard
|
IEEE 802.11b/g/n
|
| Frequency Range
|
2.4 GHz ~ 2.4835 GHz
|
| Channel Bandwidth
|
Supports 20 MHz
|
| Security
|
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
|
| Transmission Rate
|
11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps
|
| Wi-Fi Pairing
|
AP pairing
|
| Protocol
|
EZVIZ Cloud Proprietary Protocol
|
| Interface Protocol
|
EZVIZ Cloud Proprietary Protocol
|
| Local Storage
|
Supports microSD card (Up to 512 GB)
|
| Cloud Storage
|
Supports EZVIZ CloudPlay storage (subscription required)
|
| Operating Conditions
|
-10 ºC ~ 45 ºC (14 °F ~ 113 °F), Humidity 95% or less (non-condensing)
|
| Power Supply
|
DC 5V / 1A
|
| Power Consumption
|
Max. 3.0 W
|
| Dimensions
|

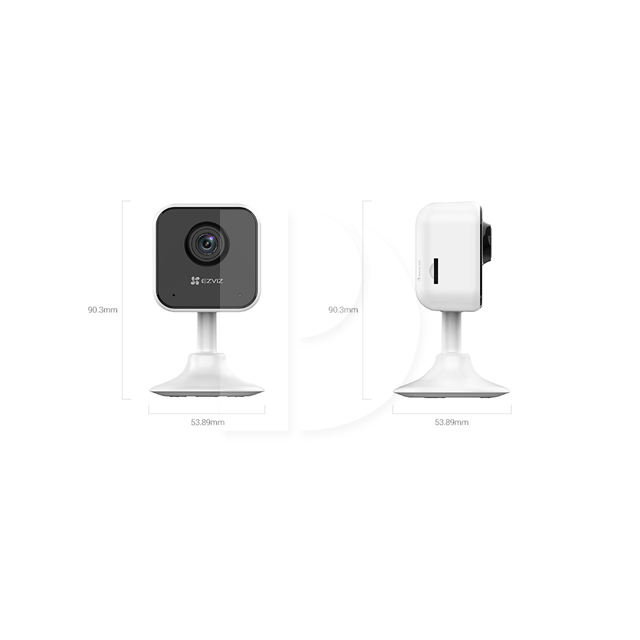

53.89 × 53.89 × 90.3 mm (2.12 × 2.12 × 3.56 inch)
|
| Packaging Dimensions
|
91.5 × 87.5 × 149 mm (3.60 × 3.44 × 5.87 inch)
|
| Net Weight
|
87 g (3.07 oz)
|
| Weight with Package
|
305 g (10.76 oz)
|
| In the Box
|
H1c Camera ×1
Power Adapter ×1
2-Meter Power Cable ×1
Foam Sticker ×2
Metal Plate ×1
Regulatory Information ×2
Quick Start Guide ×1
|
| Certifications
|
CE / RoHS / WEEE / REACH
|
