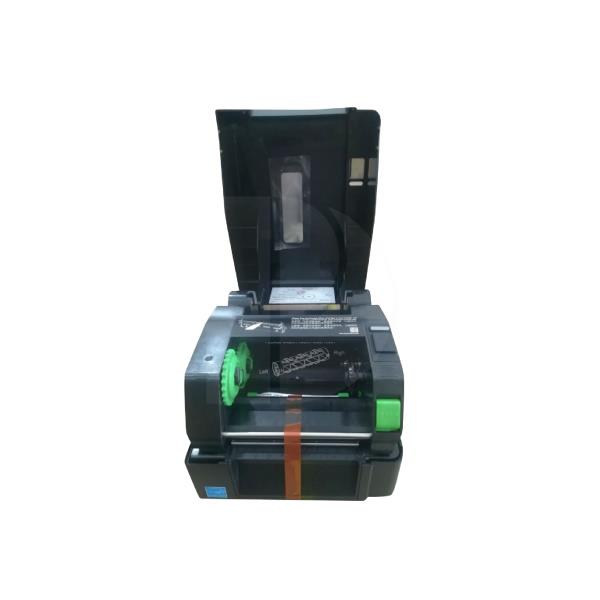

BARCODE PRINTER TSC TE244
|
| Product Model |
TSC 244 TE Barcode Printer |
| Resolution |
8 dots/ mm (203 DPI) |
| Print Speed |
152.4 mm/ sec |
| Print Width |
108 mm |
| Dimension |
204 mm (W) x 164 mm (H) x 280 mm (D) |
| Weight |
2.4 kg |
| Label Roll Capacity |
127 mm (5") OD |
| Ribbon |
300 m long, max, OD 67 mm, 1" core (ink coated outside)
110m long, max, OD 40 mm, 0.5" core (ink coated outside) |
| Ribbon Width |
40 mm - 110 mm (1.6" - 4.3") |
| Processor |
32 - bit RISC CPU |
| Memory |
8 MB Flash memory, 16 MB SDRAM |
| Interface |
USB 2.0 |
| Power |
Input, AC 100-240V, 2.5A 50-60Hz, Output, DC 24V, 2.5A, 60W |
| Sensors |
Transmissive gap sensor, Black mark reflective sensor, Ribbon end, Head open |
| 1D Barcode |
Code128UCC, Code128 subsets A, B, C, EAN128, Interleaved 2of5, Interleaved 2of5 with check digit, Code39, Code39 with check digit, EAN13,EANB, UPCA, UPCE, EAN and UPC2(5) digits add-on, Codabar, Postnet, MSI, MSI with check digit, PLESSEY, China post, ITF14, Code11, TELEPEN, TELEPENN, PLANET, CODE49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS |
| 2D Barcode |
GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF 417 |
|
